Autel Msoak Maxisys Oscilloscope Accessory Kit Wotk With The Maxiflash Vcmi, Msultra, Ms919, Mp408 4-channel Oscilloscope - Code Readers & Scan Tools

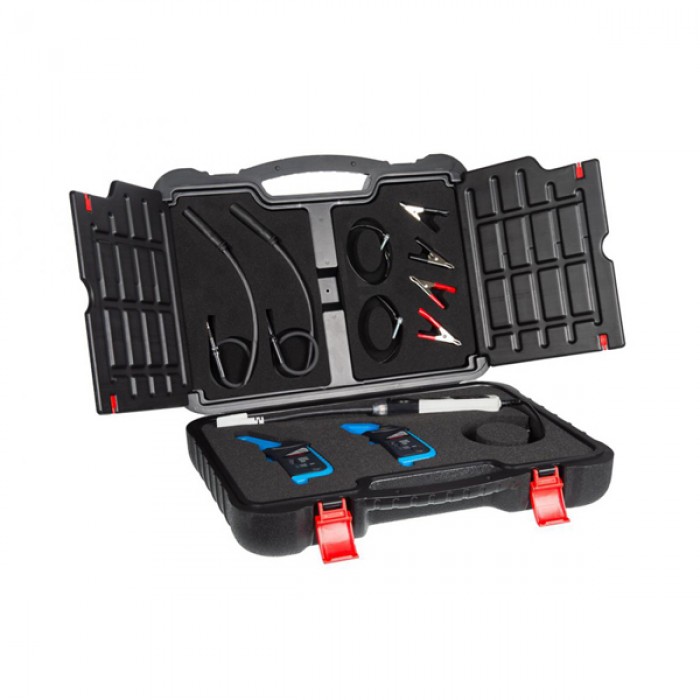

Autel AUMSOAK MSOAK Oscilloscope Accessory Kit The MSOAK, compatible with the MaxiFlash VCMI included with the MSUltra and MS919, and the MP408 4-channel oscilloscope (sold separately), includes the 65A AC/DC Current Clamp, 650A AC/DC Current Clamp, Coil On Plug Probe, HT Extension Lead (2pcs) and Battery Clip (2pcs), within a blow-molded carrying case. Compatible with MSULTRA, MS919 and MP408 Includes 65A AC/DC Current Clamp, 650A AC/DC Current Clamp Includes Coil On Plug Probe, HT Extension Lead (2pcs) and Battery Clip (2pcs) Includes Carrying Case 650A AC/DC Current Clamp Introduction: When measuring AC or DC with the Current Clamp, you can connect it with a multimeter or an oscilloscope to directly read the current value without the need to make physical contact with the conductor, or to disconnect it for insertion through the probe. It works with jaws which open to allow clamping around an electrical conductor. 65AAC/DC Current Clamp APPLICATION PROCEDURE: 1. Connect the BNC connector of the clamp to the input of a multimeter or an oscilloscope with an input impedance of at least 10k ohms. 2. When the current is no greater than 20A, set the current clamp to the range of 1mV/10mA, otherwise to 1mV/100mA. The green LED lights, indicating that the clamp is switched on. 3. Before measuring DC, please push down the zero adjustment knob on the clamp until the multimeter or oscilloscope reads zero. When using an oscilloscope, set DC coupled mode to measure DC. 4. Clamp the jaws around the electrical conductor. 5. When the current clamp is set to 1mV/10mA, the actual current value is ten times of the measured data whose unit is mV. For example, the measured data is 5 mV and the actual current is 5x 100=500mA. Coil On Plug (COP) Probe Feature: COP Probe can catch the ignition waveform of automobile engine easily. The ignition waveform is a window, through which we can see what happened in the engine combustion chambers. ● It can be used with normal oscilloscope. ● Highlight LED which is convenient to operate at night or in dark condition. Warning: ● To avoid injury, keep the probe away from moving parts, such as the alternator drive belt and cooling fans. MaxiSys MSOAK Package: 1 x 65AAC/DC Current Clamp 1 x 650A AC/DC Current Clamp 1 x Coil On Plug (COP) Probe 2 x HT Extension Lead 4 x Battery Clip 1 x Carrying Case 【65A & 650A AC/DC Current Clamp】When measuring AC or DC with the current clamp, you connect it with a multimeter or an oscilloscope to directly read the current value without physical contact with the conductor. It works with jaws that open to allow clamping around an electrical conductor. 【Compatibility】Autel MaxiSys MSOAK oscilloscope accessory kit is compatible with the MaxiFlash VCMI such as the MaxiSysUltra, MaxiSysUltra EV, MS919, and MP408. MaxiSys MSOAK it comes with 1-year warranty and 24/7 tech support covering all defects in materials and workmanship from the date of original purchase. 【The Coil On Plug Probe】It can catch the ignition waveform of an automobile engine easily. It can also be used with a normal oscilloscope. Use it to check: ignition plug status; fuel injector; leakproofness of air cylinder; oil pollution;carbon deposition;storage battery. With it, you can determine if the ignition plug needs to be replaced or cleaned, if the insulating property of the ignition plug gets worse, or if there is any leak in the air cylinder, etc.
