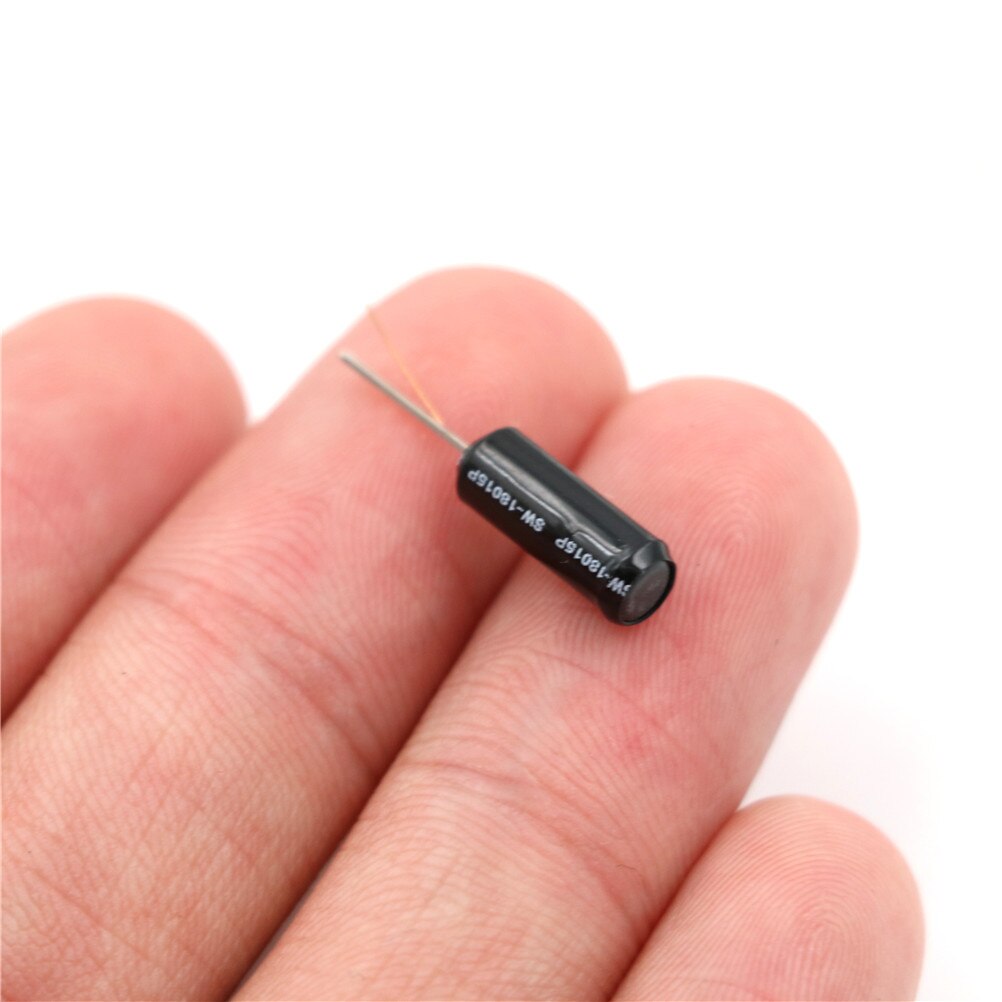

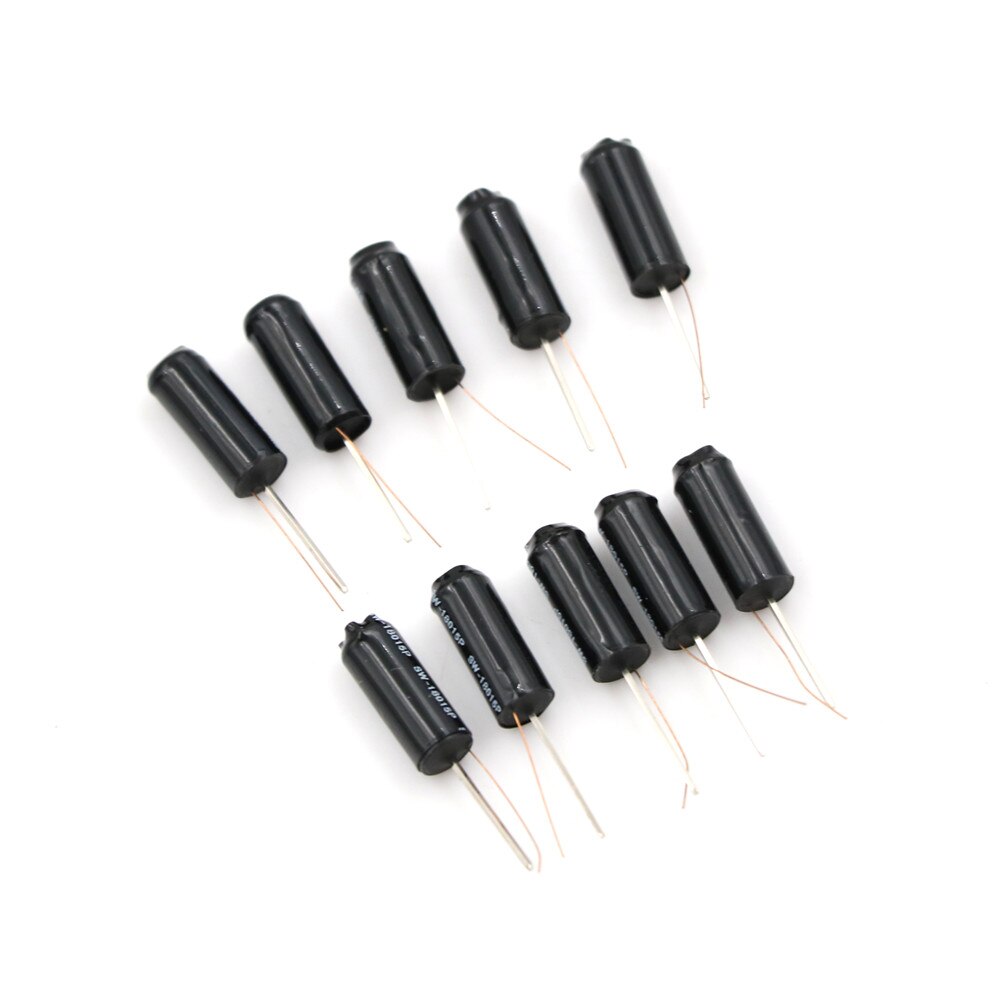

10pcs SW 18015P 18015P Non Direction Spring Sensor Switch Vibration Sensor Switch Shake High Quality

Under normal conditions, the switch life can achieve 100,000 times.2.This product is made of metal and has stable performance. The appearance is sealed with heat-shrinkable tube to protect against dust and moisture.3.This switch is suitable for touching off the small current circuit not suitable for acting as the mains switching. Working Characteristics: When the product is tilted toward the conductive end (Footless end) and the tilt angle is greater than 10 degrees, the product is in an open (OFF) state; When the trigger end (gold-plated lead end) is lower than the horizontal and the tilt angle is greater than 10 degrees, the product is in the closed state (ON). When placed horizontally, the shaking can be easily triggered; when the foot is not down, the shaking is not easy to trigger. Specification:Product Name: Vibration SwitchModel Number: SW-200DAConduction Time: 2MSMax. Temperature Resisting: 120℃Pin Size: 10mm x 0.6mm(L*D)Body Dimension: 9mm x 4.5mm(L*D) Package Content:10 x Vibration Switch Model Number: SW-200DA; Max. Voltage: 12V; Rated Thermal Current: 20mA 【CHARACTERISTICS】The SW-200DA is a ball type one-way tilt induction trigger switch. 【ADVANTAGE】This product is made of metal and has stable performance. 【APPLICATION】This switch is suitable for touching off the small current circuit not suitable for acting as the mains switching.
